FA18576

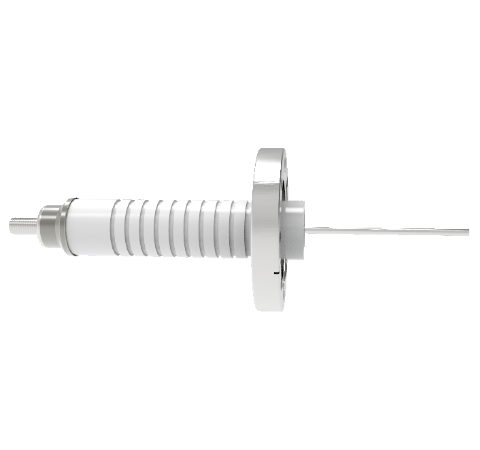

0.188 Conductor Diameter 1 Pin 70kV 9 Amp 304 Stn. Stl. w/304 SS 1/2-13 Thread Stud Conductor in a CF4.50

0.188 Conductor Diameter 1 Pin 70kV 9 Amp 304 Stn. Stl. w/304 SS 1/2-13 Thread Stud Conductor in a CF4.50
  • Number of Conductors:1
  • Style:Power
  • Voltage: 70000 Volts
  • Current: 9.0 Amps
  • Mount:CF4.50
0.188 Conductor Diameter 1 Pin 70kV 9 Amp 304 Stn. Stl. w/304 SS 1/2-13 Thread Stud Conductor in a CF4.50
PART NUMBER:
FA18576
PRICE:
$1,675.00 USD
Login to Download 3D
Product Specifications:
Number of Conductors 1
Style Power
Voltage 70,000 Volts
Current 9.0 Amps
Mount Style CF4.50
Conductor Diameter 0.188 Inches
Conductor Material 300 Series Stn. Stl.
Temperature Range -55 to 450 °C
Pressure Maximum 125 psig
Plug Other

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.
