FA34284

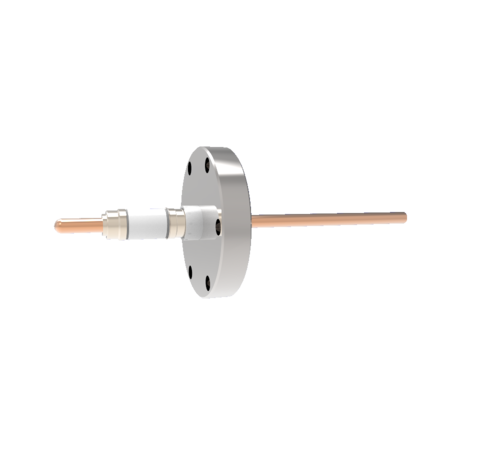

0.250 Conductor Diameter 1 Pin 15kV 100 Amp Copper Conductor in a CF2.75

0.250 Conductor Diameter 1 Pin 15kV 100 Amp Copper Conductor in a CF2.75
0.250 Conductor Diameter 1 Pin 15kV 100 Amp Copper Conductor in a CF2.75
PART NUMBER:
FA34284
PRICE:
$146.00 USD
Login to Download 3D
Product Specifications:
Number of Conductors 1
Style Power
Voltage 15,000 Volts
Current 100.0 Amps
Mount Style CF2.75
Conductor Diameter 0.250 Inches
Conductor Material Copper
Temperature Range -269 to 450 °C
Pressure Maximum 750 psig
Plug Available

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.

Add to My List:
Login to create and save product lists.

Get in touch to place an order

Complete the inquiry form to request more information and discuss your application with one of our representatives. As always, be sure to ask about volume discounts. SST reserves the right to modify pricing at any time.
