FA14964

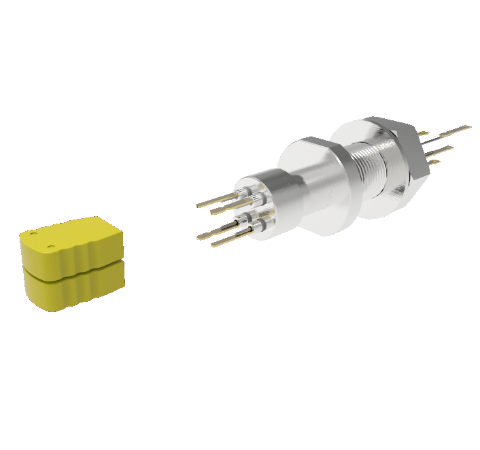

Type K 2 Pair Thermocouple Baseplate Feedthrough 1 inch Bolt With Spade Plug

Type K 2 Pair Thermocouple Baseplate Feedthrough 1 inch Bolt With Spade Plug
  • Number of Pairs:2
  • Thermocouple:K
  • Style:Spade Type
  • With Power?:TC Only
  • Voltage: 10 Volts
Type K 2 Pair Thermocouple Baseplate Feedthrough 1 inch Bolt With Spade Plug
PART NUMBER:
FA14964
PRICE:
$337.00 USD
Login to Download 3D
Product Specifications:
Number of Pairs 2
Thermocouple Type K
Style Spade Type
With Power? TC Only
Voltage 10 Volts
Current Call
Mount Style Baseplate 1 Inch
Temperature Range -25 to 205 °C
Pressure Maximum 200 psig
Plug Included

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.

Get in touch to place an order

Complete the inquiry form to request more information and discuss your application with one of our representatives. As always, be sure to ask about volume discounts. SST reserves the right to modify pricing at any time.
