KT12982

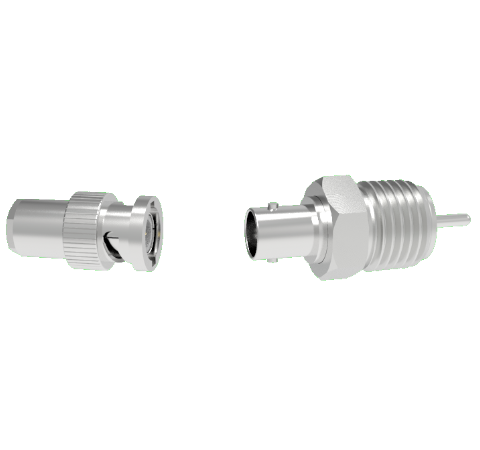

BNC Grounded Shield Recessed 500V 3.6 Amp 0.094 304 Stn. Stl. Conductor NPT 3/8 Flange With Plug

BNC Grounded Shield Recessed 500V 3.6 Amp 0.094 304 Stn. Stl. Conductor NPT 3/8 Flange With Plug
BNC Grounded Shield Recessed 500V 3.6 Amp 0.094 304 Stn. Stl. Conductor NPT 3/8 Flange With Plug
PART NUMBER:
KT12982
PRICE:
$95.50 USD
Login to Download 3D
Product Specifications:
Number of Conductors 1
Style BNC
Shield Grounded
Single/Double Ended Single
Voltage 500 Volts
Current 3.6 Amps
Mount Style NPT 3/8
Temperature Range -65 to 165 °C
Pressure Maximum 1400 psig
Plug Included
Impedance Not Matched

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.
