KT11654

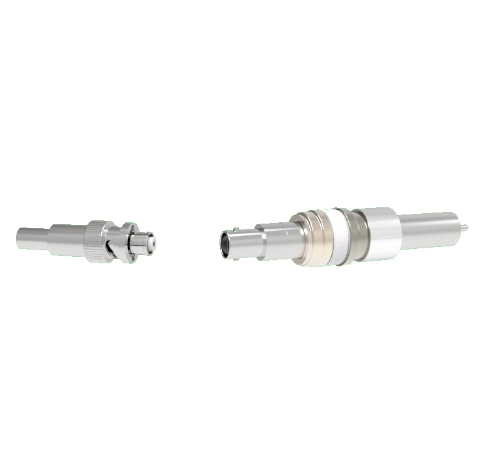

SHV Floating Shield 5kV 10 Amp 0.094 Nickel Conductor Weld With Plug

SHV Floating Shield  5kV 10 Amp 0.094 Nickel Conductor Weld With Plug
SHV Floating Shield  5kV 10 Amp 0.094 Nickel Conductor Weld With Plug
PART NUMBER:
KT11654
PRICE:
$296.50 USD
Login to Download 3D
Product Specifications:
Number of Conductors 1
Style SHV
Shield Floating
Single/Double Ended Single
Voltage 5,000 Volts
Current 10.0 Amps
Mount Style Weld
Temperature Range -55 to 125 °C
Pressure Maximum 400 psig
Plug Included
Impedance Not Matched

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.

Add to My List:
Login to create and save product lists.

Get in touch to place an order

Complete the inquiry form to request more information and discuss your application with one of our representatives. As always, be sure to ask about volume discounts. SST reserves the right to modify pricing at any time.
