KT11502

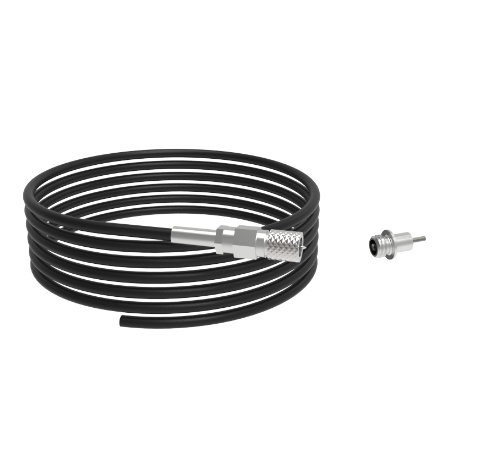

Microdot Feedthrough With Cable, 1kV, 2, Amp, 0.042 Inch Molybdenum Conductor, Weld In With Plug

Microdot Feedthrough With Cable, 1kV, 2, Amp, 0.042 Inch Molybdenum Conductor, Weld In With Plug
  • Number of Conductors:1
  • Style:Microdot
  • Shield:Grounded
  • Single/Double Ended:Single
Microdot Feedthrough With Cable, 1kV, 2, Amp, 0.042 Inch Molybdenum Conductor, Weld In With Plug
PART NUMBER:
KT11502
PRICE:
CALL FOR PRICE
Login to Download 3D
Product Specifications:
Number of Conductors 1
Style Microdot
Shield Grounded
Single/Double Ended Single
Voltage 1,000 Volts
Current 2.0 Amps
Mount Style Weld
Temperature Range -55 to 125 °C
Pressure Maximum 1600 psig
Plug Included
Impedance Not Matched

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.

Get in touch to place an order

Complete the inquiry form to request more information and discuss your application with one of our representatives. As always, be sure to ask about volume discounts. SST reserves the right to modify pricing at any time.
