KT10333

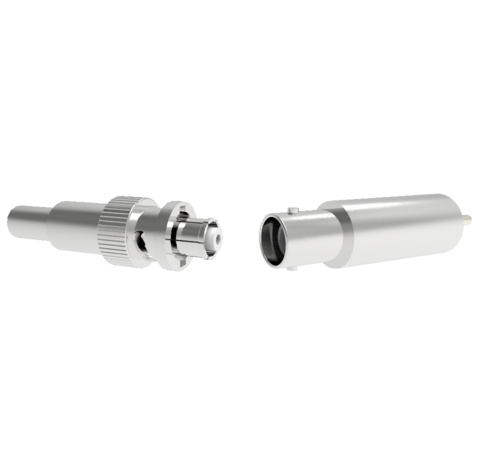

SHV Grounded Shield Recessed 5kV 10 Amp 0.094 Nickel Conductor Weld With Plug

SHV Grounded Shield Recessed 5kV 10 Amp 0.094 Nickel Conductor Weld With Plug
SHV Grounded Shield Recessed 5kV 10 Amp 0.094 Nickel Conductor Weld With Plug
PART NUMBER:
KT10333
PRICE:
$95.50 USD
Login to Download 3D
Product Specifications:
Number of Conductors 1
Style SHV
Shield Grounded
Single/Double Ended Single
Voltage 5,000 Volts
Current 10.0 Amps
Mount Style Weld
Temperature Range -65 to 165 °C
Pressure Maximum 1600 psig
Plug Included
Impedance Not Matched

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.
