FA19889

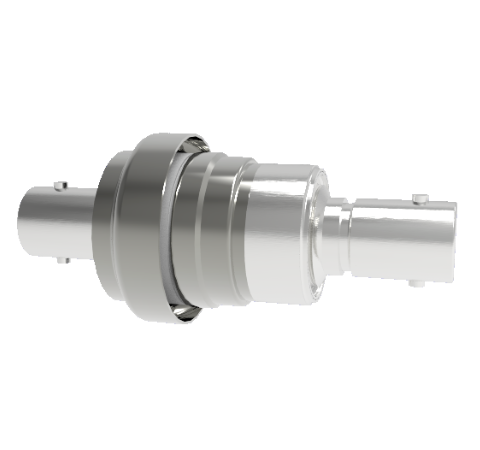

BNC 50 Ohm Floating Shield 500V 0.8 Amp Weld Without Plugs

BNC 50 Ohm Floating Shield  500V 0.8 Amp Weld Without Plugs
BNC 50 Ohm Floating Shield  500V 0.8 Amp Weld Without Plugs
PART NUMBER:
FA19889
PRICE:
$419.00 USD
Login to Download 3D
Product Specifications:
Number of Conductors 1
Style BNC
Shield Floating
Single/Double Ended Single
Voltage 500 Volts
Current 0.8 Amps
Mount Style Weld
Temperature Range -80 to 450 °C
Pressure Maximum 300 psig
Plug Available
Impedance 50 Ohm Matched

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.
