FA14776

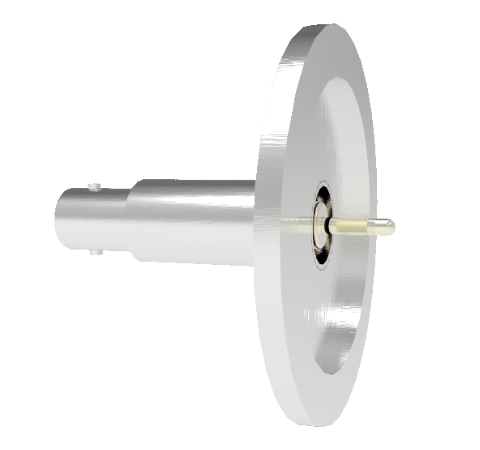

SHV Grounded Shield Recessed 5kV 10 Amp 0.094 Nickel Conductor KF40 Flange Without Plug
Product Specifications:
Number of Conductors | 1 |
Style | SHV |
Shield | Grounded |
Single/Double Ended | Single |
Voltage | 5,000 Volts |
Current | 10.0 Amps |
Mount Style | KF40 |
Temperature Range | -25 to 205 °C |
Pressure Maximum | 0 psig |
Plug | Available |
Impedance | Not Matched |
All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.
Add to My List:
Login to create and save product lists.
Get in touch to place an order
Complete the inquiry form to request more information and discuss your application with one of our representatives. As always, be sure to ask about volume discounts. SST reserves the right to modify pricing at any time.
