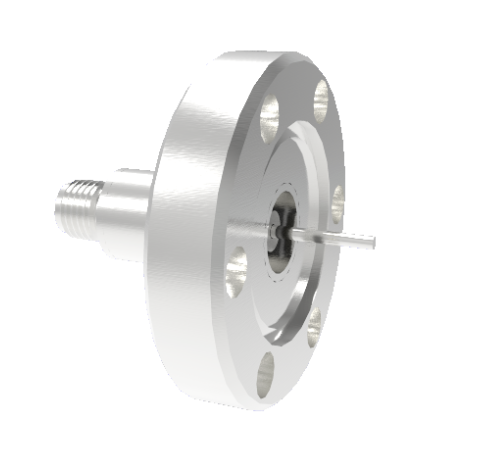

FA14319
SMA Grounded Shield Recessed 500V 1.8 Amp 0.050 304 Stn. Stl. Conductor CF1.33 Flange Without Plug
Product Specifications:
Number of Conductors | 1 |
Style | SMA |
Shield | Grounded |
Single/Double Ended | Single |
Voltage | 500 Volts |
Current | 1.8 Amps |
Mount Style | CF1.33 |
Temperature Range | -269 to 450 °C |
Pressure Maximum | 3000 psig |
Plug | Available |
Impedance | Not Matched |
All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.
