KT37950

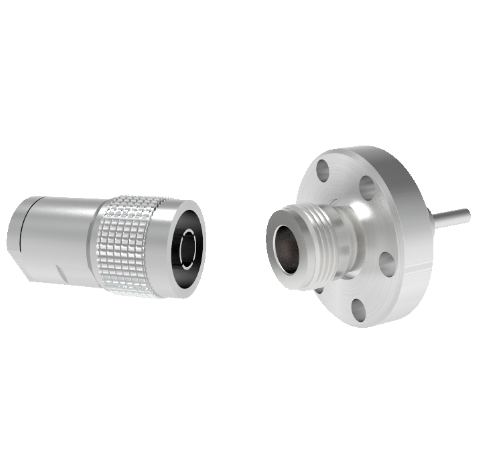

Type N 50 Ohm Grounded Shield Recessed 1.5kV 1 Amp CF1.33 Flange With Plug

Type N  50 Ohm Grounded Shield Recessed 1.5kV 1 Amp CF1.33 Flange With Plug
Type N  50 Ohm Grounded Shield Recessed 1.5kV 1 Amp CF1.33 Flange With Plug
PART NUMBER:
KT37950
PRICE:
$499.00 USD
Contact Us for 3D Model
Product Specifications:
Number of Conductors 1
Style N
Shield Grounded
Single/Double Ended Single
Voltage 1,500 Volts
Current 1.0 Amps
Mount Style CF1.33
Temperature Range -65 to 165 °C
Pressure Maximum 500 psig
Plug Included
Impedance 50 Ohm Matched

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.
