KT19243

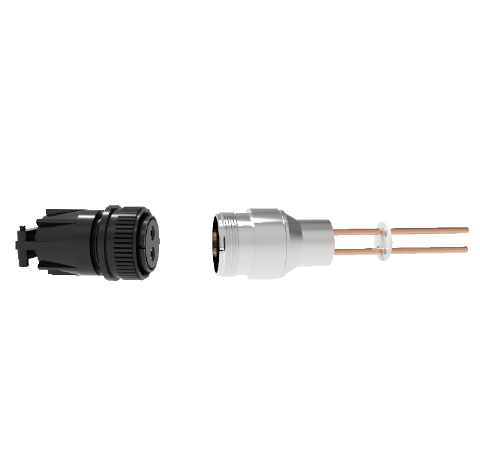

2 Pin, 69 Amp Circular Connector, 1.25kV, Copper with Silver Plating on Air Side, Weld in With Plug

2 Pin, 69 Amp Circular Connector, 1.25kV, Copper with Silver Plating on Air Side, Weld in With Plug
  • Number of Conductors:2
  • Style:High Current Circular
  • Voltage: 1250 Volts
  • Current: 69.0 Amps
  • Mount:Weld
2 Pin, 69 Amp Circular Connector, 1.25kV, Copper with Silver Plating on Air Side, Weld in With Plug
PART NUMBER:
KT19243
PRICE:
$351.00 USD
Login to Download 3D
Product Specifications:
Number of Conductors 2
Style High Current Circular
Voltage 1,250 Volts
Current 69.0 Amps
Mount Style Weld
Conductor Diameter 0.142 Inches
Conductor Material Copper
Temperature Range -55 to 125 °C
Pressure Maximum 600 psig
Plug Included

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.
