KT20675

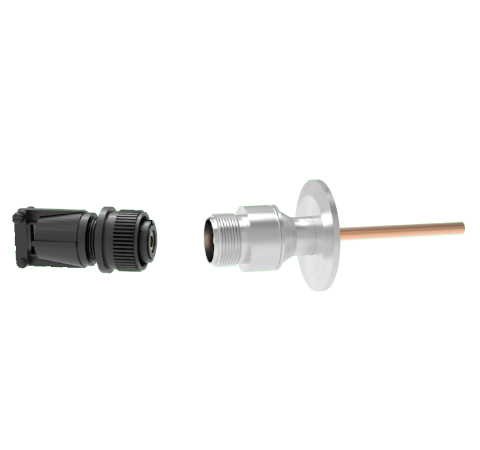

1 Pin, 120 Amp Circular Connector, 700V, Copper with Silver Plating on Air Side in a KF40 With Plug

1 Pin, 120 Amp Circular Connector, 700V, Copper with Silver Plating on Air Side in a KF40 With Plug
  • Number of Conductors:1
  • Style:High Current Circular
  • Voltage: 700 Volts
  • Current: 120.0 Amps
  • Mount:KF40
1 Pin, 120 Amp Circular Connector, 700V, Copper with Silver Plating on Air Side in a KF40 With Plug
PART NUMBER:
KT20675
PRICE:
$363.00 USD
Contact Us for 3D Model
Product Specifications:
Number of Conductors 1
Style High Current Circular
Voltage 700 Volts
Current 120.0 Amps
Mount Style KF40
Conductor Diameter 0.250 Inches
Conductor Material Copper
Temperature Range -25 to 125 °C
Pressure Maximum 0 psig
Plug Included

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.

Get in touch to place an order

Complete the inquiry form to request more information and discuss your application with one of our representatives. As always, be sure to ask about volume discounts. SST reserves the right to modify pricing at any time.
