FA11138-03

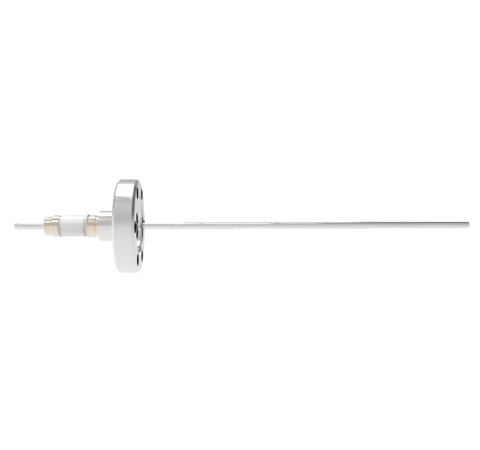

0.094 Conductor Diameter 1 Pin 10kV 16.5 Amp Nickel Conductor in a CF1.33

0.094 Conductor Diameter 1 Pin 10kV 16.5 Amp Nickel Conductor in a CF1.33
0.094 Conductor Diameter 1 Pin 10kV 16.5 Amp Nickel Conductor in a CF1.33
PART NUMBER:
FA11138-03
PRICE:
$88.50 USD
Login to Download 3D
Product Specifications:
Number of Conductors 1
Style Power
Voltage 10,000 Volts
Current 16.5 Amps
Mount Style CF1.33
Conductor Diameter 0.094 Inches
Conductor Material Nickel
Temperature Range -269 to 450 °C
Pressure Maximum 1500 psig
Plug Available

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.
