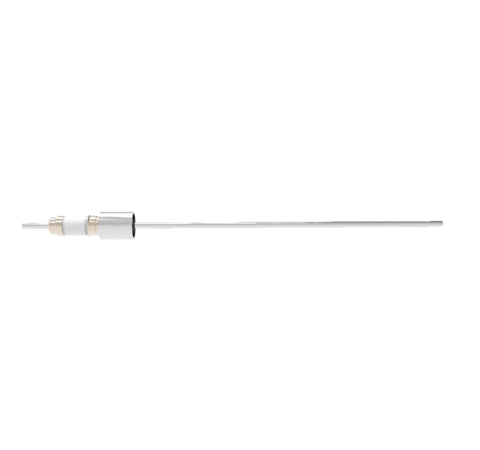

FA11134-04

0.094 Conductor Diameter 1 Pin 10kV 3.6 Amp 304 Stn. Stl. Conductor Weld

0.094 Conductor Diameter 1 Pin 10kV 3.6 Amp 304 Stn. Stl. Conductor Weld
  • Number of Conductors:1
  • Style:Power
  • Voltage: 10000 Volts
  • Current: 3.6 Amps
  • Mount:Weld
0.094 Conductor Diameter 1 Pin 10kV 3.6 Amp 304 Stn. Stl. Conductor Weld
PART NUMBER:
FA11134-04
PRICE:
$33.00 USD
Login to Download 3D
Product Specifications:
Number of Conductors 1
Style Power
Voltage 10,000 Volts
Current 3.6 Amps
Mount Style Weld
Conductor Diameter 0.094 Inches
Conductor Material 300 Series Stn. Stl.
Temperature Range -269 to 450 °C
Pressure Maximum 1500 psig
Plug Available

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.

Add to My List:
Login to create and save product lists.

Get in touch to place an order

Complete the inquiry form to request more information and discuss your application with one of our representatives. As always, be sure to ask about volume discounts. SST reserves the right to modify pricing at any time.
