FA13053-02

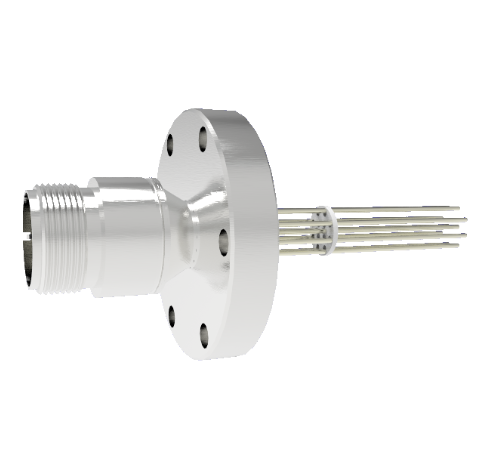

Thermocouple, Type K, 5 Pair circular connector on a CF2.75 conflat flange Without Plug

Thermocouple, Type K, 5 Pair circular connector on a CF2.75 conflat flange Without Plug
Thermocouple, Type K, 5 Pair circular connector on a CF2.75 conflat flange Without Plug
PART NUMBER:
FA13053-02
PRICE:
$368.00 USD
Login to Download 3D
Product Specifications:
Number of Pairs 5
Thermocouple Type K
Style Circular - 5015 Series
With Power? TC Only
Voltage 10 Volts
Current Call
Mount Style CF2.75
Temperature Range -269 to 450 °C
Pressure Maximum 500 psig
Plug Available

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.


Related Resources:
Add to My List:
Login to create and save product lists.

Get in touch to place an order

Complete the inquiry form to request more information and discuss your application with one of our representatives. As always, be sure to ask about volume discounts. SST reserves the right to modify pricing at any time.
