FA41215

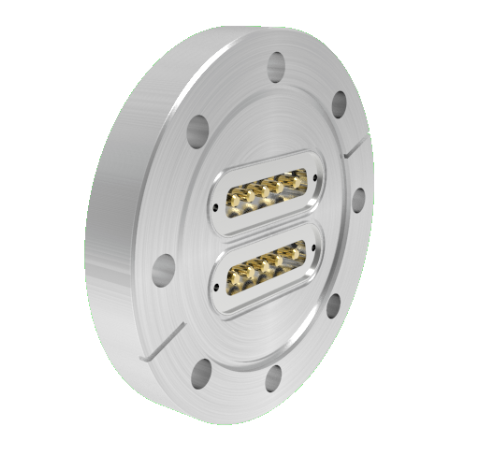

Sub D 5 Pin Power, 500V, 20 Amp, 0.142 Stn. Stl. Gold Plated Conductor, x2 in a CF4.50 Without Plugs

Sub D 5 Pin Power, 500V, 20 Amp, 0.142 Stn. Stl. Gold Plated Conductor, x2 in a CF4.50 Without Plugs
Sub D 5 Pin Power, 500V, 20 Amp, 0.142 Stn. Stl. Gold Plated Conductor, x2 in a CF4.50 Without Plugs
PART NUMBER:
FA41215
PRICE:
CALL FOR PRICE
View Drawing
Login to Download 3D
Product Specifications:
Number of Conductors 10
Style Sub-D Power
Voltage 500 Volts
Current 20.0 Amps
Mount Style CF4.50
Conductor Diameter 0.142 Inches
Conductor Material 300 Series Stn. Stl.
Temperature Range -269 to 350 °C
Pressure Maximum Call for psig
Plug Available

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.

SST General Product Specifications
Add to My List:
Login to create and save product lists.

Get in touch to place an order

Complete the inquiry form to request more information and discuss your application with one of our representatives. As always, be sure to ask about volume discounts. SST reserves the right to modify pricing at any time.
