FA42763

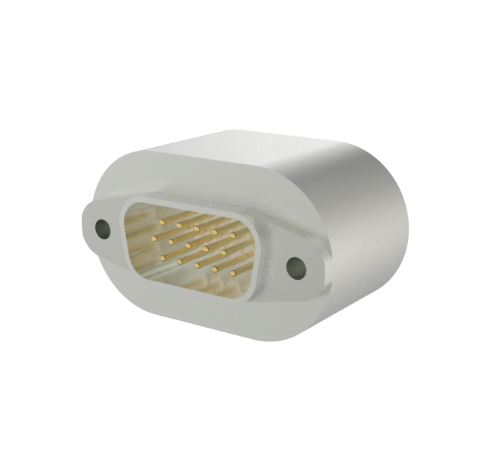

15 Pin High Density Sub D 500V 2 Amp 0.030 Stn. Stl. Gold Plated Conductors, Weld In Without Plug

15 Pin High Density Sub D 500V 2 Amp 0.030 Stn. Stl. Gold Plated Conductors, Weld In Without Plug
15 Pin High Density Sub D 500V 2 Amp 0.030 Stn. Stl. Gold Plated Conductors, Weld In Without Plug
PART NUMBER:
FA42763
PRICE:
$303.50 USD
Login to Download 3D
Product Specifications:
Number of Conductors 15
Style Sub-D High Density
Voltage 500 Volts
Current 2.0 Amps
Mount Style Weld
Conductor Diameter 0.030 Inches
Conductor Material 300 Series Stn. Stl.
Temperature Range -269 to 450 °C
Pressure Maximum Call for psig
Plug Available

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.
