FA42916

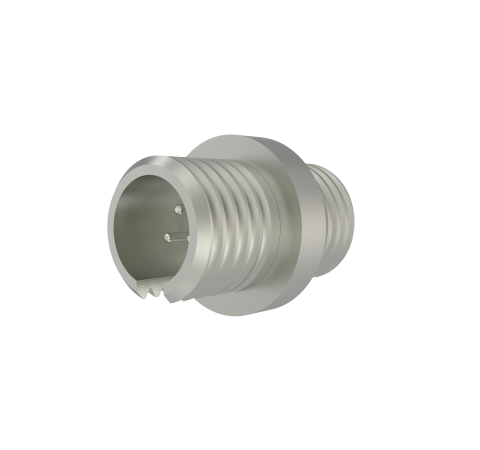

3 Pin Micro C Circular Connector, 250V, 0.018 inch Diameter Rhodium Plated Conductors, Weld In
Product Specifications:
| Number of Conductors | 3 |
| Style | Micro-C |
| Voltage | 250 Volts |
| Current | 2.3 Amps |
| Mount Style | Weld |
| Conductor Diameter | 0.018 Inches |
| Conductor Material | 300 Series Stn. Stl. |
| Temperature Range | -269 to 450 °C |
| Pressure Maximum | Call for psig |
| Plug | Available |
All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.
