FA43222

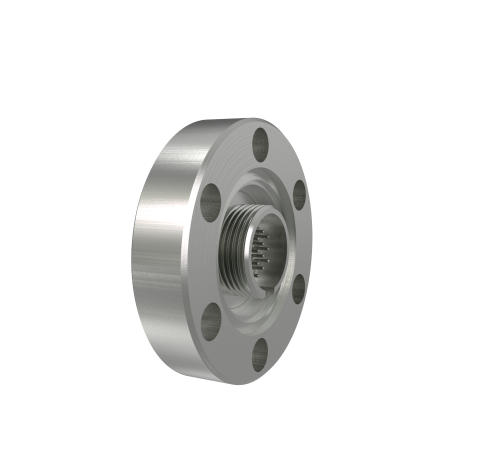

Micro C 19 Pin Circular Connector, 250V, 0.018 inch Diameter Rhodium Plated Conductors, CF1.33 Flange

Micro C 19 Pin Circular Connector, 250V, 0.018 inch Diameter Rhodium Plated Conductors, CF1.33 Flange
Micro C 19 Pin Circular Connector, 250V, 0.018 inch Diameter Rhodium Plated Conductors, CF1.33 Flange
PART NUMBER:
FA43222
PRICE:
CALL FOR PRICE
Login to Download 3D
Product Specifications:
Number of Conductors 19
Style Micro-C
Voltage 250 Volts
Current 2.3 Amps
Mount Style CF1.33
Conductor Diameter 0.018 Inches
Conductor Material 300 Series Stn. Stl.
Temperature Range -269 to 450 °C
Pressure Maximum Call for psig
Plug Available

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.
