KT44581

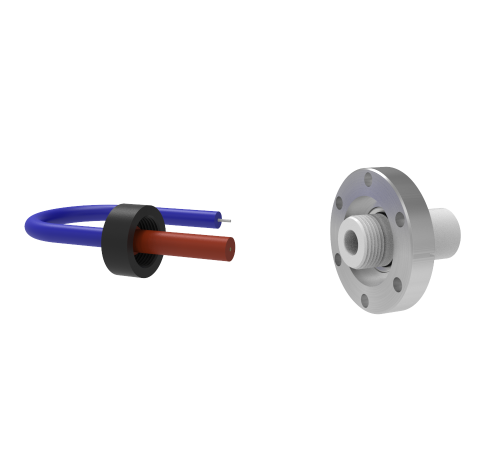

Single-Pin, 50kV, 10Amp, 0.062 Nickel-Plated Steel Conductor in a CF2.75 With Plug

Single-Pin, 50kV, 10Amp, 0.062 Nickel-Plated Steel Conductor in a CF2.75 With Plug
Single-Pin, 50kV, 10Amp, 0.062 Nickel-Plated Steel Conductor in a CF2.75 With Plug
PART NUMBER:
KT44581
PRICE:
$700.00 USD
Login to Download 3D
Product Specifications:
Number of Conductors 1
Style High Voltage
Voltage 50,000 Volts
Current 10.0 Amps
Mount Style CF2.75
Conductor Diameter 0.062 Inches
Conductor Material Nickel-Plated 1010/1020 Cold Roll Steel
Temperature Range -55 to 125 °C
Pressure Maximum 400 psig
Plug Included

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.

Add to My List:
Login to create and save product lists.

Get in touch to place an order

Complete the inquiry form to request more information and discuss your application with one of our representatives. As always, be sure to ask about volume discounts. SST reserves the right to modify pricing at any time.
