FA17905

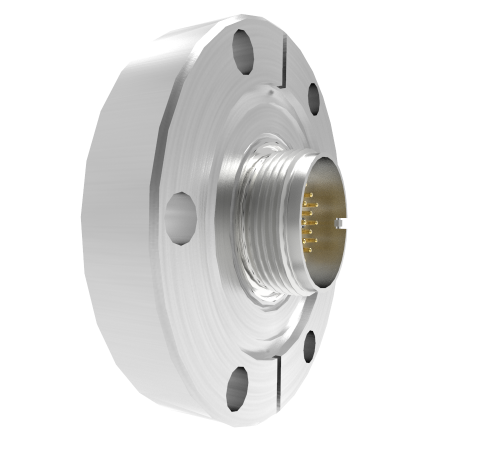

19 Pin 26482 Circular, 1kV, 3 Amp, 0.040 inch Stn Stl Gold Plated Conductor, CF2.75 Flange, Non Magnetic
Product Specifications:
Number of Conductors | 19 |
Style | Circular - 26482 Series |
Voltage | 1,000 Volts |
Current | 3.0 Amps |
Mount Style | CF2.75 |
Conductor Diameter | 0.040 Inches |
Conductor Material | 300 Series Stn. Stl. |
Temperature Range | -269 to 450 °C |
Pressure Maximum | 400 psig |
Plug | Available |
All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.
