KT25618

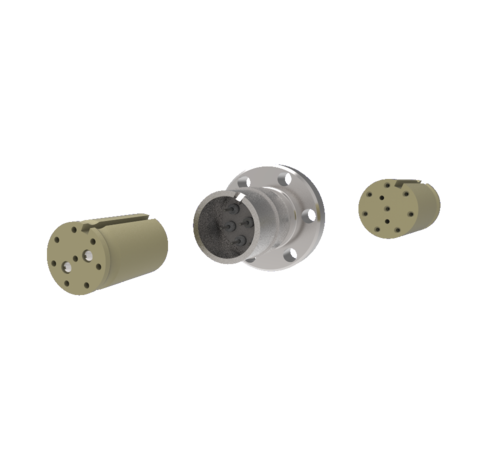

8 Pin 500V 8.5 Amp 0.032 Molybdenum Conductor in a CF1.33 With Plugs

8 Pin 500V 8.5 Amp 0.032 Molybdenum Conductor in a CF1.33 With Plugs
  • Number of Conductors:8
  • Style:Power
  • Voltage: 500 Volts
  • Current: 8.5 Amps
  • Mount:CF1.33
8 Pin 500V 8.5 Amp 0.032 Molybdenum Conductor in a CF1.33 With Plugs
PART NUMBER:
KT25618
PRICE:
CALL FOR PRICE
Login to Download 3D
Product Specifications:
Number of Conductors 8
Style Power
Voltage 500 Volts
Current 8.5 Amps
Mount Style CF1.33
Conductor Diameter 0.032 Inches
Conductor Material Molybdenum
Temperature Range -269 to 200 °C
Pressure Maximum 500 psig
Plug Included

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.
