KT35741

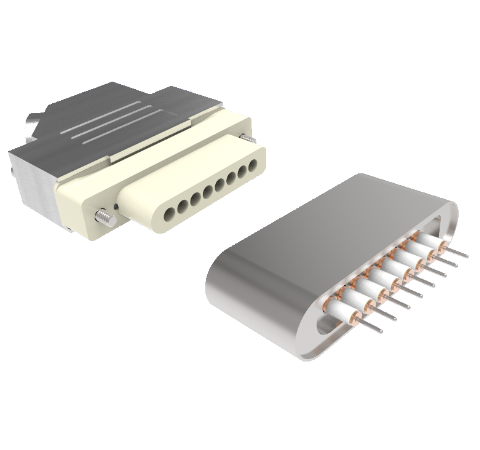

8 Pin, 3kV, 1 Amp, 0.032 Stn Stl Conductor, Weld, With Plug

8 Pin, 3kV, 1 Amp, 0.032 Stn Stl Conductor, Weld, With Plug
  • Number of Conductors:8
  • Style:High Voltage
  • Voltage: 3000 Volts
  • Current: 1.0 Amps
  • Mount:Weld
8 Pin, 3kV, 1 Amp, 0.032 Stn Stl Conductor, Weld, With Plug
PART NUMBER:
KT35741
PRICE:
CALL FOR PRICE
Login to Download 3D
Product Specifications:
Number of Conductors 8
Style High Voltage
Voltage 3,000 Volts
Current 1.0 Amps
Mount Style Weld
Conductor Diameter 0.032 Inches
Conductor Material 300 Series Stn. Stl.
Temperature Range -40 to 105 °C
Pressure Maximum 1000 psig
Plug Included

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.
