KT19780

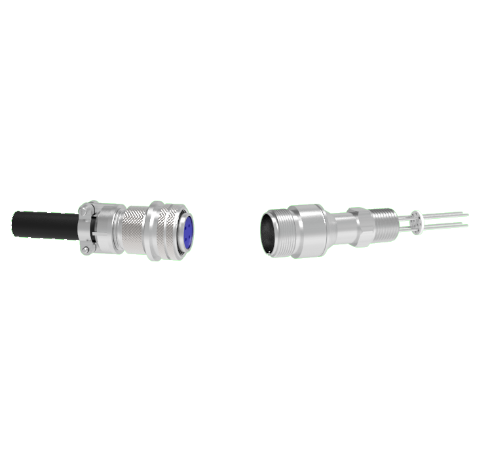

4 Pin 5015 Style Circular Connector, 700V, 4.8 Amp, Alumel Conductors in NPT 1/2 Fitting With Plug

4 Pin 5015 Style Circular Connector, 700V, 4.8 Amp, Alumel Conductors in NPT 1/2 Fitting With Plug
4 Pin 5015 Style Circular Connector, 700V, 4.8 Amp, Alumel Conductors in NPT 1/2 Fitting With Plug
PART NUMBER:
KT19780
PRICE:
$262.00 USD
Login to Download 3D
Product Specifications:
Number of Conductors 4
Style Circular - 5015 Series
Voltage 700 Volts
Current 4.8 Amps
Mount Style NPT 1/2
Conductor Diameter 0.062 Inches
Conductor Material Alumel
Temperature Range -55 to 125 °C
Pressure Maximum 600 psig
Plug Included

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.

Add to My List:
Login to create and save product lists.

Get in touch to place an order

Complete the inquiry form to request more information and discuss your application with one of our representatives. As always, be sure to ask about volume discounts. SST reserves the right to modify pricing at any time.
