FA12593-03

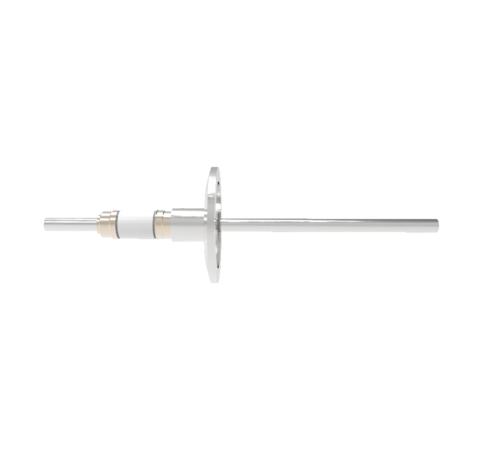

0.250 Conductor Diameter 1 Pin 12kV 56 Amp Nickel 200 Conductor in a KF40

0.250 Conductor Diameter 1 Pin 12kV 56 Amp Nickel 200 Conductor in a KF40
0.250 Conductor Diameter 1 Pin 12kV 56 Amp Nickel 200 Conductor in a KF40
PART NUMBER:
FA12593-03
PRICE:
$120.50 USD
Login to Download 3D
Product Specifications:
Number of Conductors 1
Style Power
Voltage 12,000 Volts
Current 56.0 Amps
Mount Style KF40
Conductor Diameter 0.250 Inches
Conductor Material Nickel
Temperature Range -25 to 205 °C
Pressure Maximum 0 psig
Plug Other

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.
