FA14321-03

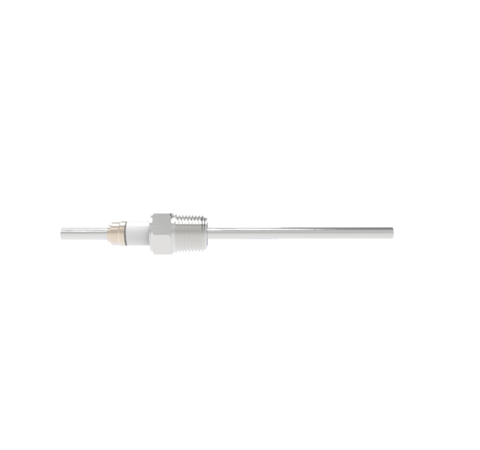

0.250 Conductor Diameter 1 Pin 5kV 56 Amp Nickel Conductor in a NPT 1/2

0.250 Conductor Diameter 1 Pin 5kV 56 Amp Nickel Conductor in a NPT 1/2
  • Number of Conductors:1
  • Style:Power
  • Voltage: 5000 Volts
  • Current: 56.0 Amps
  • Mount:NPT 1/2
0.250 Conductor Diameter 1 Pin 5kV 56 Amp Nickel Conductor in a NPT 1/2
PART NUMBER:
FA14321-03
PRICE:
$149.00 USD
Login to Download 3D
Product Specifications:
Number of Conductors 1
Style Power
Voltage 5,000 Volts
Current 56.0 Amps
Mount Style NPT 1/2
Conductor Diameter 0.250 Inches
Conductor Material Nickel
Temperature Range -260 to 230 °C
Pressure Maximum 750 psig
Plug Other

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.

Add to My List:
Login to create and save product lists.

Get in touch to place an order

Complete the inquiry form to request more information and discuss your application with one of our representatives. As always, be sure to ask about volume discounts. SST reserves the right to modify pricing at any time.
