FA18685

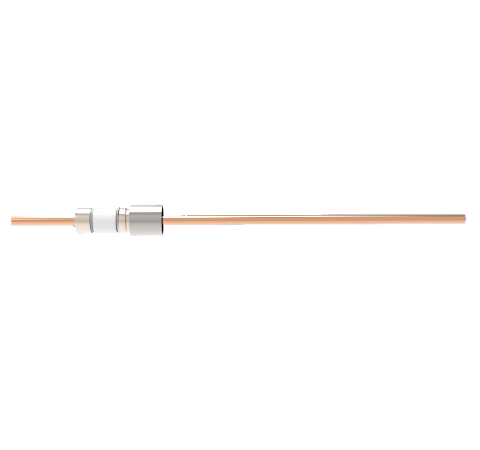

5kV Copper Tube Feedthrough, 0.157 Inch Conductor Diameter, 1 Pin Weld in Feedthrough

5kV Copper Tube Feedthrough, 0.157 Inch Conductor Diameter, 1 Pin Weld in Feedthrough
  • Number of Conductors:1
  • Style:Power
  • Voltage: 5000 Volts
  • Current: Call
  • Mount:Weld
5kV Copper Tube Feedthrough, 0.157 Inch Conductor Diameter, 1 Pin Weld in Feedthrough
PART NUMBER:
FA18685
PRICE:
CALL FOR PRICE
Login to Download 3D
Product Specifications:
Number of Conductors 1
Style Power
Voltage 5,000 Volts
Current Call
Mount Style Weld
Conductor Diameter 0.157 Inches
Conductor Material Copper
Temperature Range -269 to 450 °C
Pressure Maximum 750 psig
Plug Other

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.

Add to My List:
Login to create and save product lists.

Get in touch to place an order

Complete the inquiry form to request more information and discuss your application with one of our representatives. As always, be sure to ask about volume discounts. SST reserves the right to modify pricing at any time.
