KT14369

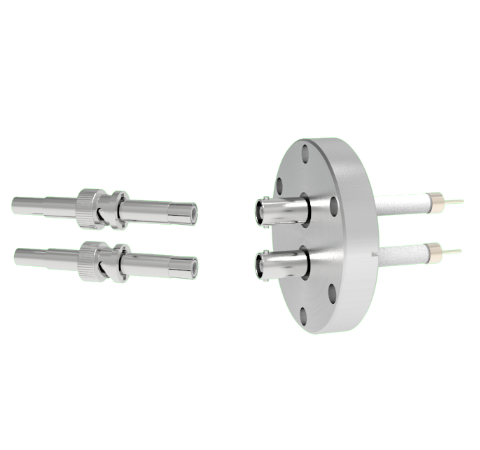

SHV Grounded Shield Exposed 10kV 8.2 Amp 0.051 Nickel Conductor 2 each in a CF2.75 Flange With Plug
![SHV Grounded Shield Exposed 10kV 8.2 Amp 0.051 Nickel Conductor 2 each in a CF2.75 Flange With Plug](https://www.solidsealing.com/img/products/image-201113012428682.png)
![SHV Grounded Shield Exposed 10kV 8.2 Amp 0.051 Nickel Conductor 2 each in a CF2.75 Flange With Plug](https://www.solidsealing.com/img/products/image-201113012428682.png)
Product Specifications:
Number of Conductors | 2 |
Style | SHV |
Shield | Grounded |
Single/Double Ended | Single |
Voltage | 10,000 Volts |
Current | 8.2 Amps |
Mount Style | CF2.75 |
Temperature Range | -55 to 85 °C |
Pressure Maximum | 120 psig |
Plug | Included |
Impedance | Not Matched |
All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.
