FA23878

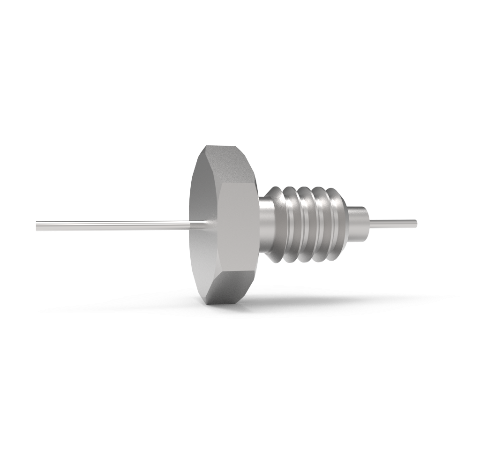

0.030 Inch, 1 Pin, 1kV Baseplate Feedthrough, 1.1 Amp Stainless Steel Conductor, 1/4 inch Bolt mount

0.030 Inch, 1 Pin, 1kV Baseplate Feedthrough, 1.1 Amp Stainless Steel Conductor, 1/4 inch Bolt mount
  • Number of Conductors:1
  • Style:Power
  • Voltage: 1000 Volts
  • Current: 1.1 Amps
  • Mount:Baseplate 1/4 Inch
0.030 Inch, 1 Pin, 1kV Baseplate Feedthrough, 1.1 Amp Stainless Steel Conductor, 1/4 inch Bolt mount
PART NUMBER:
FA23878
PRICE:
CALL FOR PRICE
Login to Download 3D
Product Specifications:
Number of Conductors 1
Style Power
Voltage 1,000 Volts
Current 1.1 Amps
Mount Style Baseplate 1/4 Inch
Conductor Diameter 0.030 Inches
Conductor Material 300 Series Stn. Stl.
Temperature Range -25 to 205 °C
Pressure Maximum 3500 psig
Plug Other

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.

Get in touch to place an order

Complete the inquiry form to request more information and discuss your application with one of our representatives. As always, be sure to ask about volume discounts. SST reserves the right to modify pricing at any time.
