KT17512

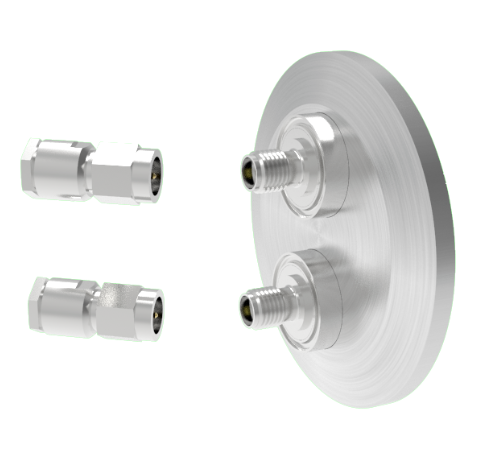

SMA 50 Ohm Grounded Shield 500V 0.8 Amp 2 each in a KF40 Flange With Plug

SMA 50 Ohm Grounded Shield 500V 0.8 Amp 2 each in a KF40 Flange With Plug
SMA 50 Ohm Grounded Shield 500V 0.8 Amp 2 each in a KF40 Flange With Plug
PART NUMBER:
KT17512
PRICE:
$746.50 USD
Contact Us for 3D Model
Product Specifications:
Number of Conductors 2
Style SMA
Shield Grounded
Single/Double Ended Double
Voltage 500 Volts
Current 0.8 Amps
Mount Style KF40
Temperature Range -25 to 165 °C
Pressure Maximum 0 psig
Plug Included
Impedance 50 Ohm Matched

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.


Related Resources:
Add to My List:
Login to create and save product lists.

Get in touch to place an order

Complete the inquiry form to request more information and discuss your application with one of our representatives. As always, be sure to ask about volume discounts. SST reserves the right to modify pricing at any time.
