KT14230

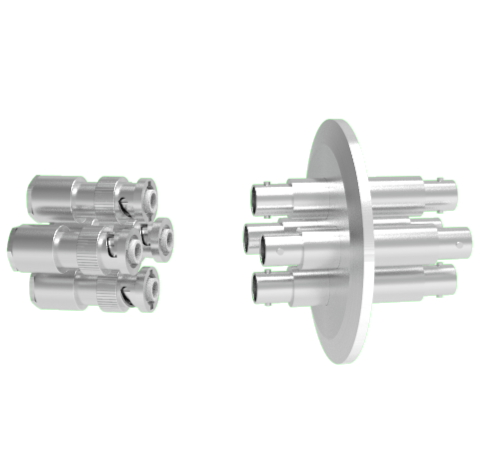

MHV Grounded Shield Recessed 5kV 3.6 Amp 4 each in a KF50 Flange With Plug

MHV Grounded Shield Recessed 5kV 3.6 Amp 4 each in a KF50 Flange With Plug
  • Number of Conductors:4
  • Style:MHV
  • Shield:Grounded
  • Single/Double Ended:Double
MHV Grounded Shield Recessed 5kV 3.6 Amp 4 each in a KF50 Flange With Plug
PART NUMBER:
KT14230
PRICE:
$890.00 USD
Contact Us for 3D Model
Product Specifications:
Number of Conductors 4
Style MHV
Shield Grounded
Single/Double Ended Double
Voltage 5,000 Volts
Current 3.6 Amps
Mount Style KF50
Temperature Range -25 to 165 °C
Pressure Maximum 0 psig
Plug Included
Impedance Not Matched

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.
