KT14920

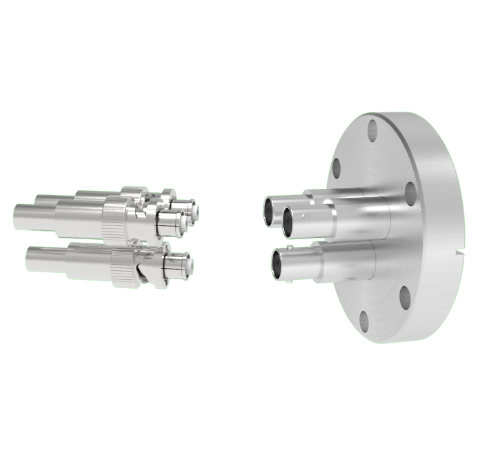

SHV Grounded Shield Recessed 5kV 10 Amp 0.094 Nickel Conductor 3 each in a CF2.75 Flange With Plug

SHV Grounded Shield Recessed 5kV 10 Amp 0.094 Nickel Conductor 3 each in a CF2.75 Flange With Plug
  • Number of Conductors:3
  • Style:SHV
  • Shield:Grounded
  • Single/Double Ended:Single
SHV Grounded Shield Recessed 5kV 10 Amp 0.094 Nickel Conductor 3 each in a CF2.75 Flange With Plug
PART NUMBER:
KT14920
PRICE:
$319.00 USD
Login to Download 3D
Product Specifications:
Number of Conductors 3
Style SHV
Shield Grounded
Single/Double Ended Single
Voltage 5,000 Volts
Current 10.0 Amps
Mount Style CF2.75
Temperature Range -65 to 165 °C
Pressure Maximum 1500 psig
Plug Included
Impedance Not Matched

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.

Get in touch to place an order

Complete the inquiry form to request more information and discuss your application with one of our representatives. As always, be sure to ask about volume discounts. SST reserves the right to modify pricing at any time.
