KT11179

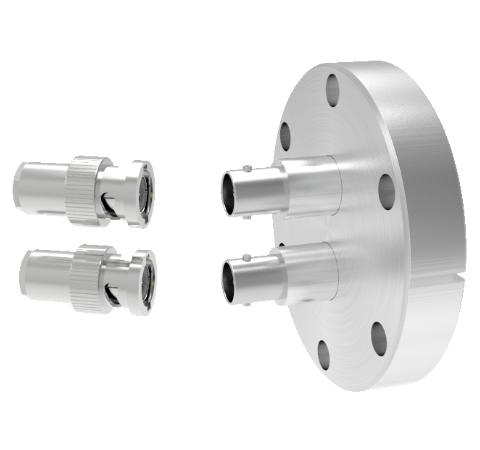

MHV Grounded Shield Recessed 5kV 3.6 Amp 0.094 304 Stn. Stl. Conductor 2 each CF2.75 With Plug

MHV Grounded Shield Recessed 5kV 3.6 Amp 0.094 304 Stn. Stl. Conductor 2 each CF2.75 With Plug
  • Number of Conductors:2
  • Style:MHV
  • Shield:Grounded
  • Single/Double Ended:Single
MHV Grounded Shield Recessed 5kV 3.6 Amp 0.094 304 Stn. Stl. Conductor 2 each CF2.75 With Plug
PART NUMBER:
KT11179
PRICE:
$165.00 USD
Contact Us for 3D Model
Product Specifications:
Number of Conductors 2
Style MHV
Shield Grounded
Single/Double Ended Single
Voltage 5,000 Volts
Current 3.6 Amps
Mount Style CF2.75
Temperature Range -55 to 125 °C
Pressure Maximum 1400 psig
Plug Included
Impedance Not Matched

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.


Related Resources:

Get in touch to place an order

Complete the inquiry form to request more information and discuss your application with one of our representatives. As always, be sure to ask about volume discounts. SST reserves the right to modify pricing at any time.
