KT12969

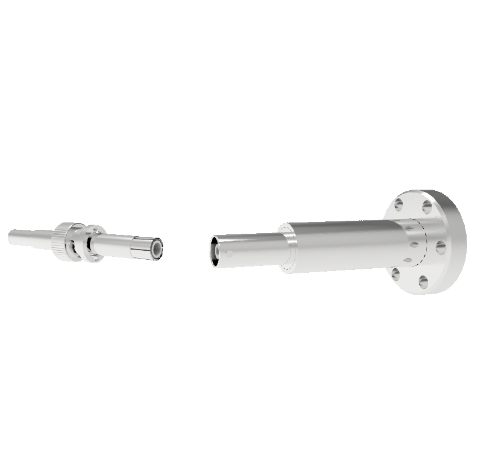

SHV Grounded Shield Recessed 10kV 8.2 Amp 0.051 Nickel Conductor CF1.33 Flange With Plug

SHV Grounded Shield Recessed 10kV 8.2 Amp 0.051 Nickel Conductor CF1.33 Flange With Plug
  • Number of Conductors:1
  • Style:SHV
  • Shield:Grounded
  • Single/Double Ended:Single
SHV Grounded Shield Recessed 10kV 8.2 Amp 0.051 Nickel Conductor CF1.33 Flange With Plug
PART NUMBER:
KT12969
PRICE:
$209.00 USD
Login to Download 3D
Product Specifications:
Number of Conductors 1
Style SHV
Shield Grounded
Single/Double Ended Single
Voltage 10,000 Volts
Current 8.2 Amps
Mount Style CF1.33
Temperature Range -55 to 85 °C
Pressure Maximum 120 psig
Plug Included
Impedance Not Matched

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.

Add to My List:
Login to create and save product lists.

Get in touch to place an order

Complete the inquiry form to request more information and discuss your application with one of our representatives. As always, be sure to ask about volume discounts. SST reserves the right to modify pricing at any time.
