KT20839

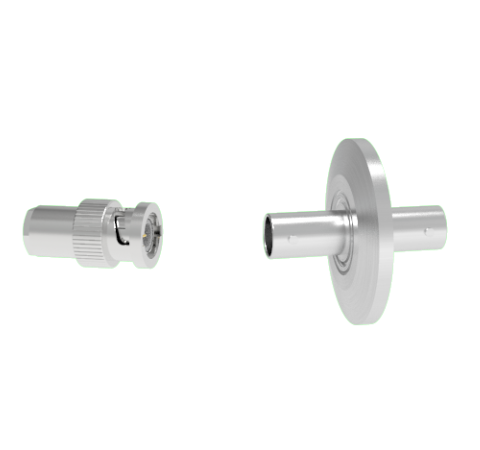

BNC 50 Ohm Grounded Shield 500V 0.8 Amp KF25 Flange With Plug

BNC 50 Ohm Grounded Shield 500V 0.8 Amp KF25 Flange With Plug
  • Number of Conductors:1
  • Style:BNC
  • Shield:Grounded
  • Single/Double Ended:Single
BNC 50 Ohm Grounded Shield 500V 0.8 Amp KF25 Flange With Plug
PART NUMBER:
KT20839
PRICE:
$370.00 USD
Contact Us for 3D Model
Product Specifications:
Number of Conductors 1
Style BNC
Shield Grounded
Single/Double Ended Single
Voltage 500 Volts
Current 0.8 Amps
Mount Style KF25
Temperature Range -25 to 165 °C
Pressure Maximum 0 psig
Plug Included
Impedance 50 Ohm Matched

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.
