FA19118

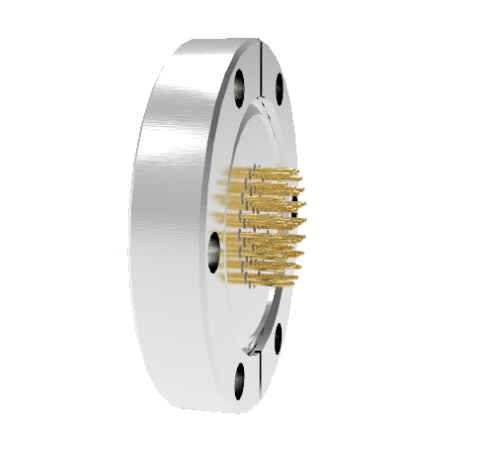

0.040 Conductor Diameter 41 Pin 1kV 5 Amp Stn Stl Conductor in a 2.75CF Rotatable

0.040 Conductor Diameter 41 Pin 1kV 5 Amp Stn Stl Conductor in a 2.75CF Rotatable
  • Number of Conductors:41
  • Style:Power
  • Voltage:1000 Volts
  • Current:5.0 Amps
  • Mount:CF2.75 Rotatable
0.040 Conductor Diameter 41 Pin 1kV 5 Amp Stn Stl Conductor in a 2.75CF Rotatable
PART NUMBER:
FA19118
PRICE:
CALL FOR PRICE
Contact Us for 3D Model
Product Specifications:
Number of Conductors 41
Style Power
Voltage 1,000 Volts
Current 5.0 Amps
Mount Style CF2.75 Rotatable
Conductor Diameter 0.040 Inches
Conductor Material 300 Series Stn. Stl.
Temperature Range -269 to 450 °C
Pressure Maximum 350 psig
Plug Other

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.

Get in touch to place an order

Complete the inquiry form to request more information and discuss your application with one of our representatives. As always, be sure to ask about volume discounts. SST reserves the right to modify pricing at any time.
