KT20688

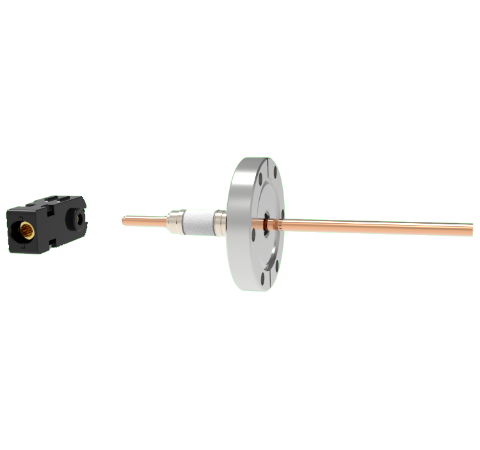

1 Pin Quick Connect, 2.5kV, 125 Amp, 0.250 Copper, Silver Plating Air Side, CF2.75 Conflat With Plug

1 Pin Quick Connect, 2.5kV, 125 Amp, 0.250 Copper, Silver Plating Air Side, CF2.75 Conflat With Plug
1 Pin Quick Connect, 2.5kV, 125 Amp, 0.250 Copper, Silver Plating Air Side, CF2.75 Conflat With Plug
PART NUMBER:
KT20688
PRICE:
$155.50 USD
Contact Us for 3D Model
Product Specifications:
Number of Conductors 1
Style High Current Quick
Voltage 2,500 Volts
Current 125.0 Amps
Mount Style CF2.75
Conductor Diameter 0.250 Inches
Conductor Material Copper
Temperature Range -55 to 125 °C
Pressure Maximum 750 psig
Plug Included

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.
