FA41283

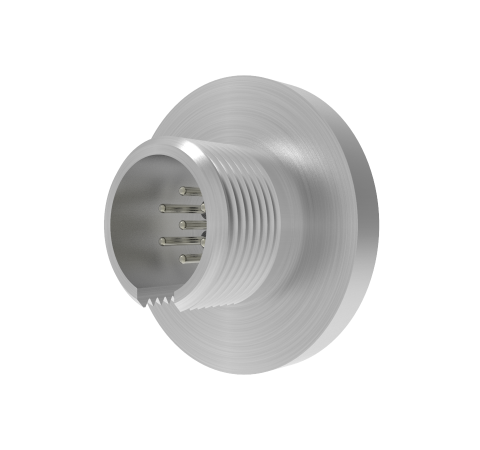

MICRO C, 7 PIN CIRCULAR CONNECTOR, 250V, 0.018 INCH DIAMETER RHODIUM PLATED CONDUCTORS, WELD IN

MICRO C, 7 PIN CIRCULAR CONNECTOR, 250V, 0.018 INCH DIAMETER RHODIUM PLATED CONDUCTORS, WELD IN
  • Number of Conductors:7
  • Style:Micro-C
  • Voltage: 250 Volts
  • Current: 2.3 Amps
  • Mount:Weld
MICRO C, 7 PIN CIRCULAR CONNECTOR, 250V, 0.018 INCH DIAMETER RHODIUM PLATED CONDUCTORS, WELD IN
PART NUMBER:
FA41283
PRICE:
$120.00 USD
Login to Download 3D
Product Specifications:
Number of Conductors 7
Style Micro-C
Voltage 250 Volts
Current 2.3 Amps
Mount Style Weld
Conductor Diameter 0.018 Inches
Conductor Material 300 Series Stn. Stl.
Temperature Range -269 to 450 °C
Pressure Maximum Call for psig
Plug Available

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.


Related Resources:

Get in touch to place an order

Complete the inquiry form to request more information and discuss your application with one of our representatives. As always, be sure to ask about volume discounts. SST reserves the right to modify pricing at any time.
