KT35438

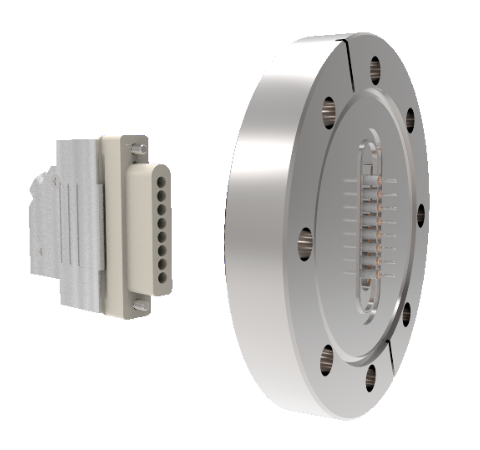

8 Pin 3kV 1 Amp 0.032 Stn Stl Conductor in a CF4.50 With Plug

8 Pin 3kV 1 Amp 0.032 Stn Stl Conductor in a CF4.50 With Plug
  • Number of Conductors:8
  • Style:High Voltage
  • Voltage: 3000 Volts
  • Current: 1.0 Amps
  • Mount:CF4.50
8 Pin 3kV 1 Amp 0.032 Stn Stl Conductor in a CF4.50 With Plug
PART NUMBER:
KT35438
PRICE:
CALL FOR PRICE
Login to Download 3D
Product Specifications:
Number of Conductors 8
Style High Voltage
Voltage 3,000 Volts
Current 1.0 Amps
Mount Style CF4.50
Conductor Diameter 0.032 Inches
Conductor Material 300 Series Stn. Stl.
Temperature Range -40 to 105 °C
Pressure Maximum 1000 psig
Plug Included

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.
