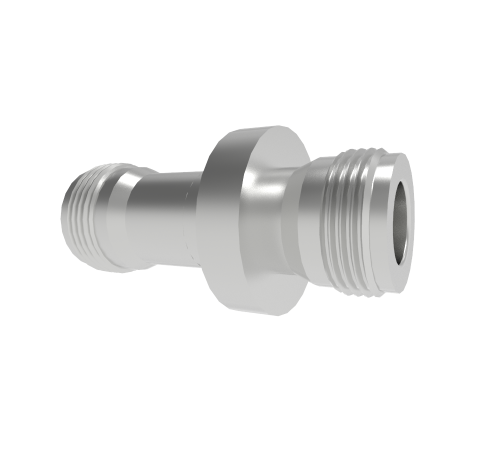

1.5kV 50 Ohm 1 Amp Weld Without Plugs

1.5kV  50 Ohm 1 Amp Weld Without Plugs
1.5kV  50 Ohm 1 Amp Weld Without Plugs
$399.00 USD
Login to Download 3D
Product Specifications:
Number of Conductors 1
Style N
Shield Grounded
Single/Double Ended Double
Voltage 1,500 Volts
Current 1.0 Amps
Mount Style Weld
Temperature Range -269 to 350 °C
Pressure Maximum 500 psig
Plug Available
Impedance 50 Ohm Matched

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.
