FA33323-4FF

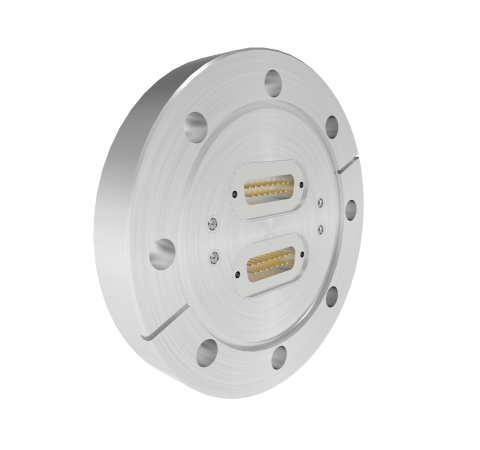

2 Each 15 Pin Sub D 24308 Series 500V, 5 Amp, With 4 each 50 Ohm SMP Connectors in a CF4.50 Conflat Flange

2 Each 15 Pin Sub D 24308 Series 500V, 5 Amp, With 4 each 50 Ohm SMP Connectors in a CF4.50 Conflat Flange
2 Each 15 Pin Sub D 24308 Series 500V, 5 Amp, With 4 each 50 Ohm SMP Connectors in a CF4.50 Conflat Flange
PART NUMBER:
FA33323-4FF
PRICE:
$1,166.00 USD
Contact Us for 3D Model
Product Specifications:
Number of Conductors 15
Style Sub-D - 24308 Series
Voltage 500 Volts
Current 5.0 Amps
Mount Style CF4.50
Conductor Diameter 0.040 Inches
Conductor Material 300 Series Stn. Stl.
Temperature Range -269 to 450 °C
Pressure Maximum Call for psig
Plug Available

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.
